B+ Wire With Protector, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Hybrid vehicle high voltage in the high voltage system. Danger of electrocution! Inspect the high voltage components in the area where the work will be performed before starting the procedure. Follow all general warnings. Refer to HIGH VOLTAGE SYSTEM GENERAL WARNINGS .

WARNING:

Hybrid vehicle high voltage in the high voltage system. Danger of electrocution! The following procedure requires working on the high voltage system. Disable the high voltage system now.

-- Disable the high voltage system. Refer to DISABLING THE HIGH VOLTAGE SYSTEM .

-- Disconnect the 12V battery under the driver seat. Refer to BATTERY .

-- Remove the high voltage connection cover plate from the Electric Drive Power and Control Electronics -JX1-. Refer to HIGH VOLTAGE CONNECTION COVER PLATE ON Electric Drive Power and Control Electronics -JX1-, REMOVING AND INSTALLING .

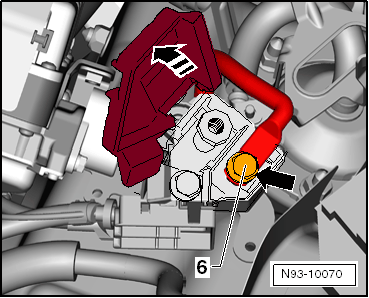

-- Open the cap on the jump start point and remove the B+ wire nut (20 Nm ) -6-.

Fig 1: Cap On The Jump Start Point And The B+ Cable Nut (20 Nm) -6-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the B+ wire underneath from the threaded connector.

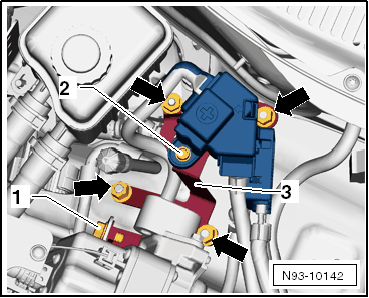

-- Remove the nuts -arrows-. Remove the bolts -1 and 2- and then remove the bracket -3- from the engine compartment.

Fig 2: Bracket, Nuts, And Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

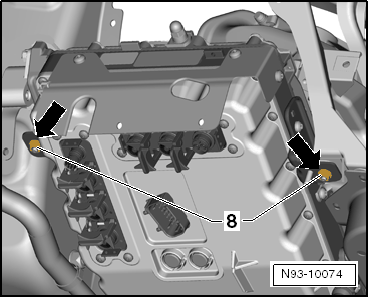

-- Remove both nuts (10 Nm ) -8- and lift the Electric Drive Power and Control Electronics -JX1- slightly upward from the rubber bushings in the bracket in order to access the nut for the B+ wire.

Fig 3: Identifying Nuts (10 Nm) -8-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

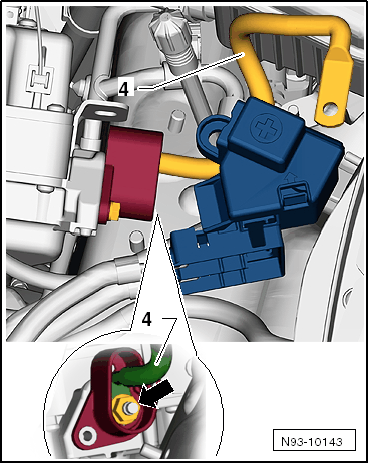

-- Remove the nut -arrow-. Remove the B+ wire with protector -4- from the vehicle.

Fig 4: Identifying Nut -Arrow- To Remove B+ Cable And Protector -4- From Vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
