Overview - Hybrid Components: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Additional Information:
Refer to Self Study Program High Voltage System in the Touareg.

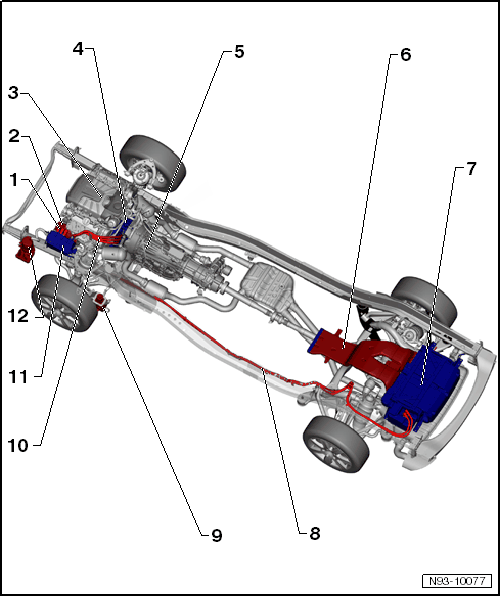

General Description
The most important components of the Touareg hybrid system are the Electro-Drive Drive Motor -V141-, the Hybrid Battery Unit -AX1-, the high voltage cables and the Electric Drive Power and Control Electronics -JX1-, which contains the Voltage Converter -A19- and the Drive Motor Inverter -A37-.
Other components are the Electrical A/C Compressor -V470-, the low temperature cooling system, the fans for the Hybrid Battery Unit -AX1-, the decoupler, the Decoupler Pressure Sensor -G738- and the Electrical Power Steering Pump -V466-.
- Electric A/C Compressor High Voltage Cable -P3-
- Removing and installing. Refer to ELECTRIC A/C COMPRESSOR HIGH VOLTAGE CABLE -P3-, REMOVING AND INSTALLING
- Electrical A/C Compressor -V470-
- Removing and installing. Refer to ELECTRICAL A/C COMPRESSOR -V470-
- 3.0L V6 TFSI Combustion Engine
- Electro-Drive Drive Motor -V141-
- Removing and installing. Refer to ELECTRO-DRIVE DRIVE MOTOR -V141-, REMOVING AND INSTALLING
- Transmission Fluid Auxiliary Hydraulic Pump --
- Component location: Under the transmission housing
- Transmission Fluid Auxiliary Hydraulic Pump -- removing and installing. Refer to TRANSMISSION FLUID AUXILIARY HYDRAULIC PUMP -- .
- Auxiliary Hydraulic Pump Control Module -J922- removing and installing. Refer to Auxiliary Hydraulic Pump Control Module -J922-, REMOVING AND INSTALLING .
- Air Supply Duct for Hybrid Battery Cooling
- Removing and installing. Refer to BATTERY FAN AIR SUPPLY DUCTS, REMOVING AND INSTALLING
- Hybrid Battery Unit -AX1-
- With Connection and Junction Box 1 -SX1- (E-box) and Battery Regulation Control Module -J840-. Refer to BATTERY REGULATION CONTROL MODULE -J840-, REMOVING AND INSTALLING .
- With Battery Fan --. Refer to BATTERY FANS --, REMOVING AND INSTALLING .
- Hybrid battery unit removing and installing. Refer to HYBRID BATTERY UNIT -AX1-
- Hybrid Battery High Voltage Wiring Harness -PX1-
- Hybrid Battery High Voltage Cable, Positive Terminal -P1-
- Hybrid Battery High Voltage Cable, Negative Terminal -P2-
- Removing and installing. Refer to HIGH VOLTAGE WIRING HARNESS FOR HIGH VOLTAGE BATTERY -PX1-, REMOVING AND INSTALLING
- Decoupler Pressure Actuator -N511-
- Removing and installing. Refer to DECOUPLER PRESSURE ACTUATOR -N511-
- Drive Motor High Voltage Wiring Harness -PX2-
- Drive Motor High Voltage Cable 1 -P4-
- Drive Motor High Voltage Cable 2 -P5-
- Drive Motor High Voltage Cable 3 -P6-
- Removing and installing. Refer to DRIVE MOTOR HIGH VOLTAGE WIRING HARNESS -PX2-, REMOVING AND INSTALLING
- Electric Drive Power and Control Electronics -JX1-
- Electrical Drive Control Module -J841-
- Voltage Converter -A19-
- Drive Motor Inverter -A37-
- Intermediate Circuit Capacitor 1 -C25-
- Removing and installing. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS -JX1-
- Electrical Power Steering Pump -V466-
- Removing and installing. Refer to ELECTRICAL POWER STEERING PUMP -V466-
