Knock Sensor 1 And 2 - G61- And - G66-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the compressor. Refer to SUPERCHARGER, REMOVING AND INSTALLING .

-- Remove the applicable intake manifold lower section. Refer to INTAKE MANIFOLD LOWER SECTION WITH FUEL RAIL, REMOVING AND INSTALLING .

-- Remove the connector -3- (green) for the Knock Sensor 1 -G61- from the bracket.

Fig 1: Connector & Knock Sensor (KS)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connector -2- (gray) for the Knock Sensor 2 -G66- from the bracket and disconnect it.

Fig 2: Electrical Connector Bracket And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screw -1- for Knock Sensor 1 -G61- and the screw -2- for the Knock Sensor 2 -G66- and then remove the knock sensors.

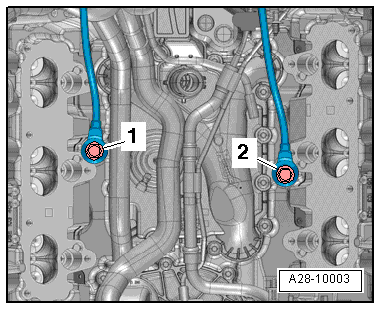

Fig 3: Identifying Bolt -1- For KS 1 And Bolt -2- For KS 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
