Starter, 3.6L FSI Engine 206 Kw, Automatic Transmission Ag8, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the noise insulation NOISE INSULATION .

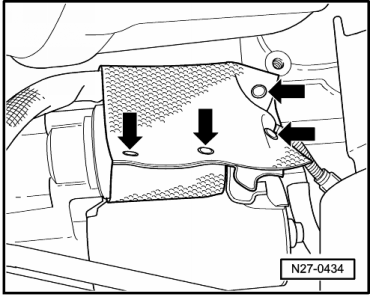

-- Open the snap buttons -arrows- and remove the heat shield mat from the solenoid switch.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

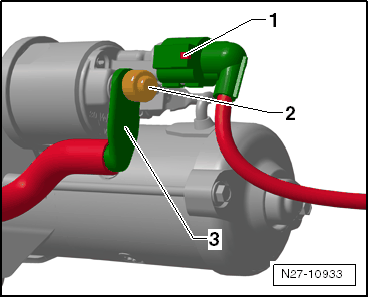

-- Disconnect the terminal 50 connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry off the cap -2- and remove the underlying nut for the positive cable.

-- Disconnect the positive cable -3- from the solenoid switch.

CAUTION:

The threaded connection on the solenoid switch can twist.

The solenoid switch can be damaged.

Counterhold the threaded connection on the solenoid switch using an open-end wrench when disconnect and connecting the positive wire.

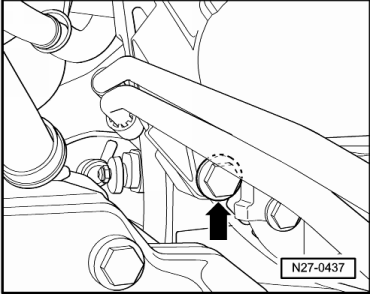

-- Remove the bottom bolt -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

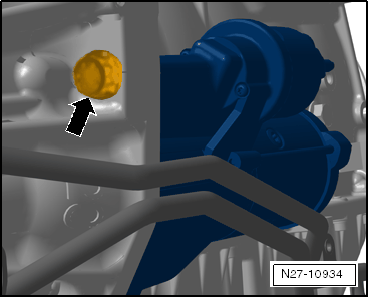

-- Remove the upper bolt -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The bolt on the top of the starter is accessible by reaching between the primary catalytic converter exhaust pipes.

-- Remove the starter from the vehicle.
