Overview - Starter
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always follow the procedure in the service informationwhen disconnecting the battery. The battery cut-out will be deactivated and damage to the vehicle electrical equipment may occur if the connecting sequence is not followed exactly. Refer to BATTERY .

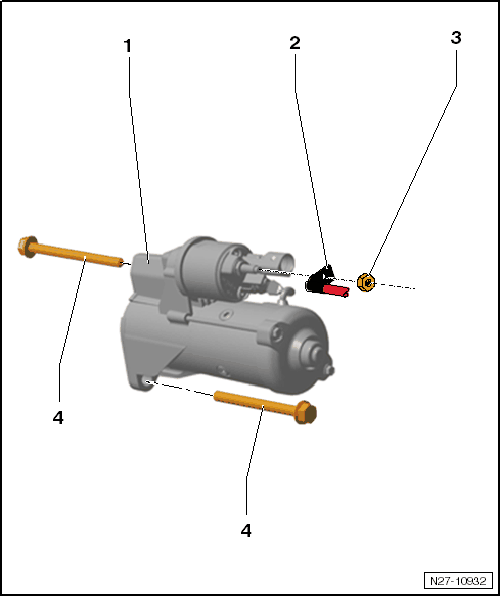

- Starter
- Removing and installing. Refer to STARTER, 3.6L FSI ENGINE 206 KW, AUTOMATIC TRANSMISSION AG8, REMOVING AND INSTALLING
- Checking. Refer to STARTER -B-, CHECKING .
- Positive Cable
- Nut, Positive Wire to Solenoid Switch
- 15 Nm
- M8
- Collar Bolts
- 75 Nm
- M12 x 60
