Overview- Starter, 4.2L TDI 250 Kw, Automatic Transmission Ag8

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

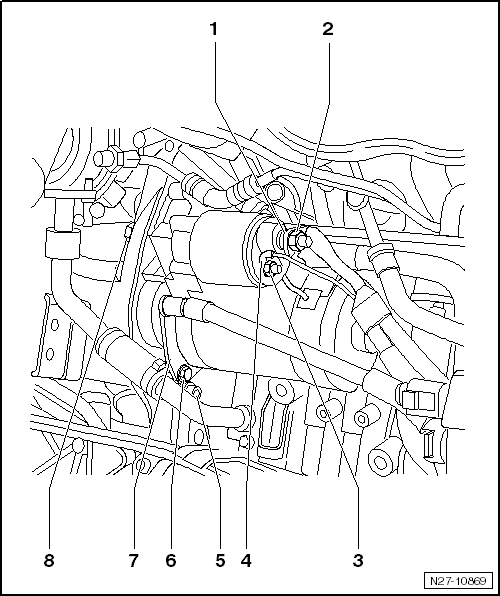

Fig 1: Exploded View Of Starter, 4.2L Tdi 250 Kw, Automatic Transmission Ag8
GWWN27-10869Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. B+ wire
  2. Nut, B+ wire to solenoid switch
    • M8 hex flange nut
    • Tightening Specification: 20 Nm
  3. Nut, wire terminal 50 to starter solenoid switch
    • Nut M6
    • Tightening Specification: 6 Nm
  4. Wire, terminal 50
  5. Lower starter bolt
    • M8 hex socket head bolt
    • Tightening Specification: 22 Nm
  6. Bolt, ground cable to starter
    • Hex bolt M8
    • Tightening specification: 20 Nm
  7. Ground cable
  8. Upper starter bolt
    • M10 bolt
    • Tightening Specification: 42 Nm
