Starter, 3.0L TSI 213 Kw, Automatic Transmission Al8, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the generator. Refer to GENERATOR, 3.0L TSI ENGINE, 213 KW .

-- Remove the right engine bracket. Refer to ENGINE MOUNT, REMOVING AND INSTALLING [For engine(s) CATA] .

NOTE:

It is not necessary to remove the engine mount in order to remove and install the engine bracket.

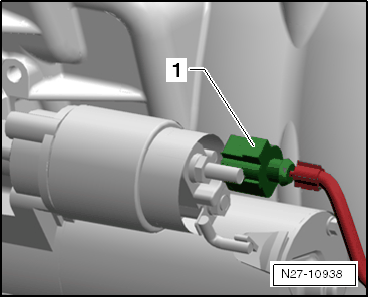

-- Disconnect the terminal 50 connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry off the cap and remove the underlying nut -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

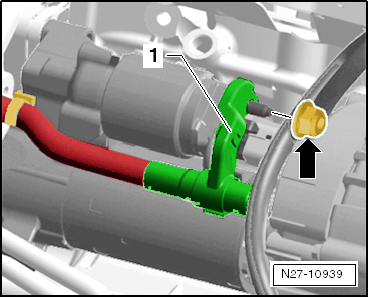

-- Disconnect the positive cable -1- from the solenoid switch.

CAUTION:

The threaded connection on the solenoid switch can twist.

The solenoid switch can be damaged.

Counterhold the threaded connection on the solenoid switch using an open-end wrench when disconnect and connecting the positive wire.

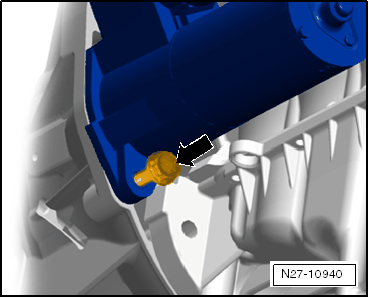

-- Remove the bottom bolt -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

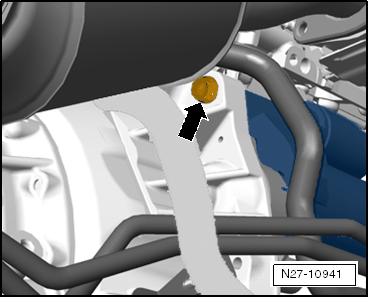

-- Remove the upper bolt -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the starter from the vehicle.
