Overview - Starter
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always follow the procedure in the service informationwhen disconnecting the battery. The battery cut-out will be deactivated and damage to the vehicle electrical equipment may occur if the connecting sequence is not followed exactly. Refer to BATTERY .

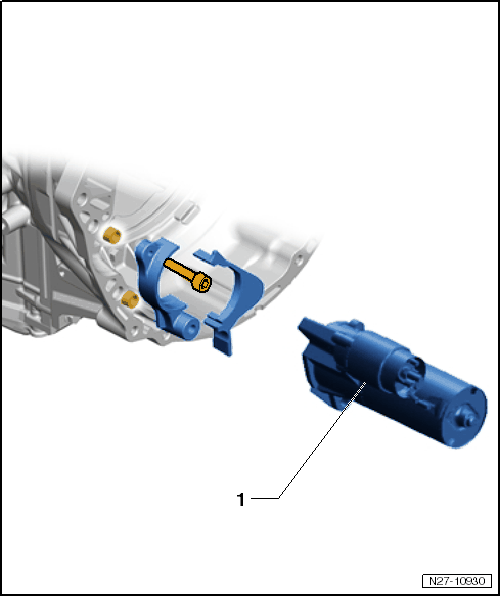

- Starter
- Removing and installing. Refer to STARTER, 3.0L TSI 213 KW, AUTOMATIC TRANSMISSION AL8, REMOVING AND INSTALLING .
- Checking. Refer to Starter -B-, CHECKING .
- Tightening Specification for the M8 nut, positive cable to solenoid switch - 20 Nm.
- Tightening Specification for the top bolt (18 mm), starter to transmission - 30 Nm + 105° ± 30° additional turn.
- Tightening Specification for the bottom bolt (16 mm), starter to transmission - 15 Nm + 105° ± 30° additional turn.
