Battery, Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Risk of injury. Follow all Warnings and Safety Precautions. Refer to WARNINGS AND SAFETY PRECAUTIONS .

CAUTION:
  • Always follow the procedure described in service informationwhen connecting the battery. The battery cut-out will be deactivated and damage to the vehicle electrical equipment may occur if the connecting sequence is not followed exactly. Refer to BATTERY .
  • Observe notes for threaded connections of battery terminals. Refer to BATTERY POST/TERMINAL .
CAUTION:

Always follow the procedure in the service informationwhen disconnecting the battery. The battery cut-out will be deactivated and damage to the vehicle electrical equipment may occur if the connecting sequence is not followed exactly. Refer to BATTERY .

-- Remove the left front seat. Refer to FRONT SEATS .

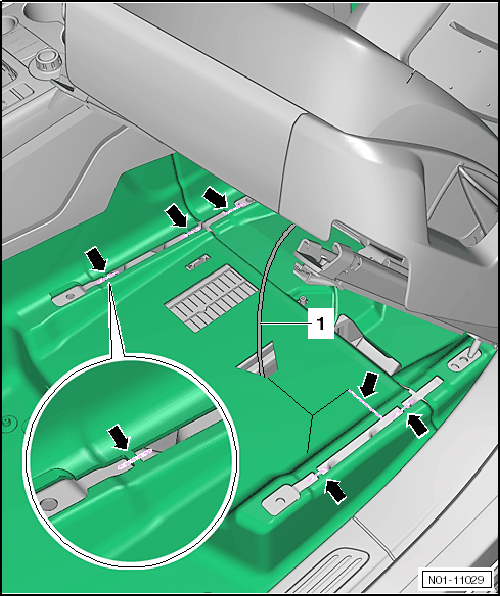

-- Cut open the carpet where shown -arrows-.

GWWN01-11029Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Only for Vehicles with a Rear Air Conditioning (A/C) System

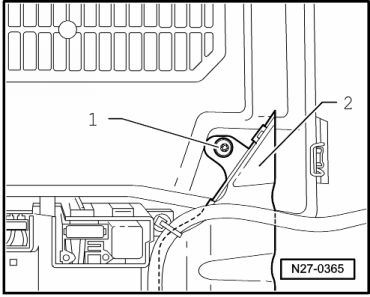

-- Remove the bolt -1- and the air duct -2-.

GWWN27-0365Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation For All Vehicles

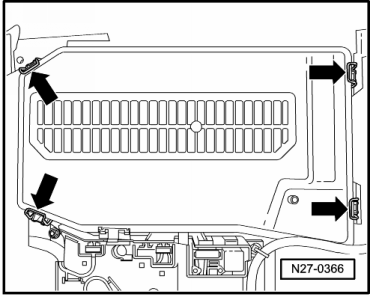

-- Fold back the carpet, open the lock on the battery housing -arrows- and remove the cover.

GWWN27-0366Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect negative (-) terminal -1- from battery.

GWWN27-0368Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect positive (B+) terminal -2- from battery.

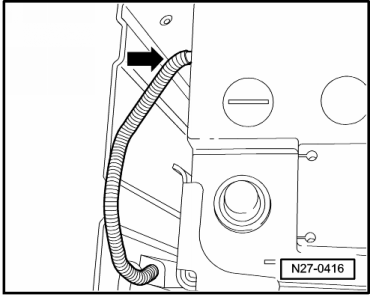

-- Disconnect central gas vent hose -arrow- from top cover.

GWWN27-0416Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolt -1- and battery bottom rail bracket -2-.

GWWN27-0369Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolt -1- and retainer bracket -2-.

GWWN27-0370Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

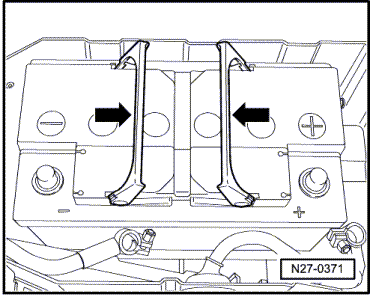

-- Fold battery handles -arrows- upward.

GWWN27-0371Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Hold the battery by the handles and lift it out of the battery case.
