Overview - Distance Regulation Control Module -J428- "Master", Distance Regulation Control Module 2 -J850- "Slave"
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The Distance Regulation Control Module -J428- "Master" is shown in the illustration. The location of the components for the Distance Regulation Control Module -J428- "Slave" is a mirror image.

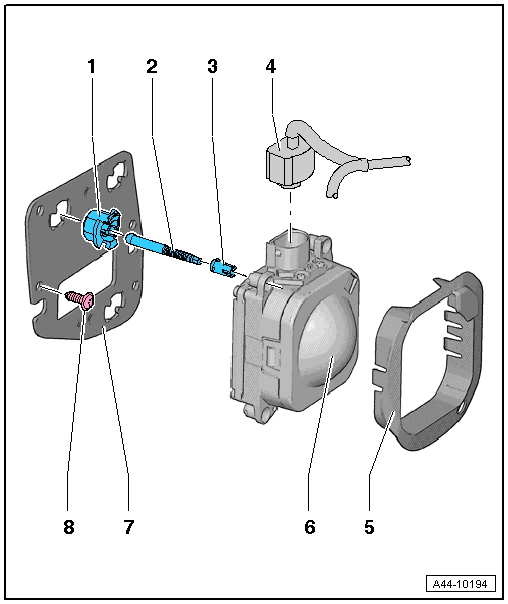

Fig 1: Exploded View Of Distance Regulation Control Module -J428- "Master", Distance Regulation Control Module 2 -J850- "Slave"
- Nut
- Stud Bolt
- Replace the clip if the adjusting screw was removed.
- Note the adjustment dimension when assembling Measure Dimension a on All the Adjusting Screws.
- Clip
- Replace the clip if the adjusting screw was removed.
- Removing and installing. Refer to REMOVE THE CLIP ON THE DISTANCE REGULATION CONTROL MODULE -J428- "MASTER", DISTANCE REGULATION CONTROL MODULE 2 -J850- "SLAVE"
- Connector
- Cover
- Distance Regulation Control Module -J428-
- Removing and installing. Refer to DISTANCE REGULATION CONTROL MODULE -J428-, REMOVING AND INSTALLING
- Bracket
- Bolt
- 4.5 Nm
- Quantity: 4
