Overview - Hydraulic Unit: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

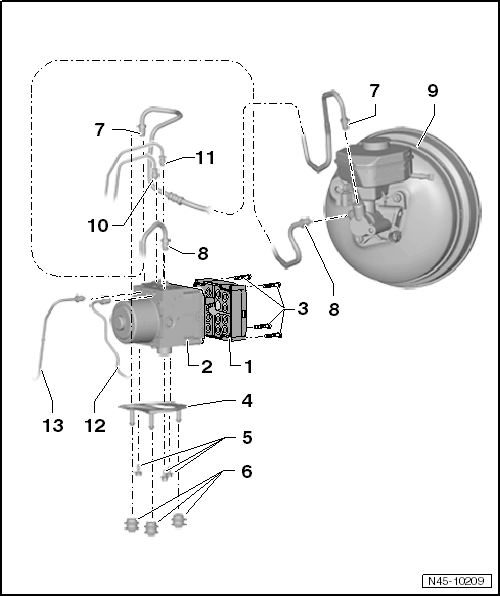

- ABS Control Module -J104-
- Removing and installing. Refer to CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .
- ABS Hydraulic Unit -N55-
- Removing and installing. Refer to CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .
- TORX®
Bolt
- 2 +0.8 Nm
- Without tilting, tighten diagonally in stages
- Bracket
- Allocation. Refer to the Parts Information.
- Bolt
- 9 Nm
- Rubber Buffer
- Brake Line
- 18 Nm
- Brake master cylinder/secondary piston circuit to hydraulic unit
- Identification: 8.5 mm diameter and tube fitting with a M12 x 1 thread
- Brake Line
- 18 Nm
- Brake master cylinder/primary piston circuit to hydraulic unit
- Identification: 8.5 mm diameter and tube fitting with a M12 x 1 thread
- Brake Booster with Master Brake Cylinder
- Overview. Refer to BRAKE BOOSTER/BRAKE MASTER CYLINDER .
- Removing and installing. Refer to BRAKE BOOSTER, REMOVING AND INSTALLING .
- Brake Line
- 14 Nm
- To the left rear brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread
- Brake Line
- 14 Nm
- To the right front brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- Brake Line
- 14 Nm
- To the left front brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread
- Brake Line
- 14 Nm
- To the right rear brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
