Wheel Hub, Pressing In

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

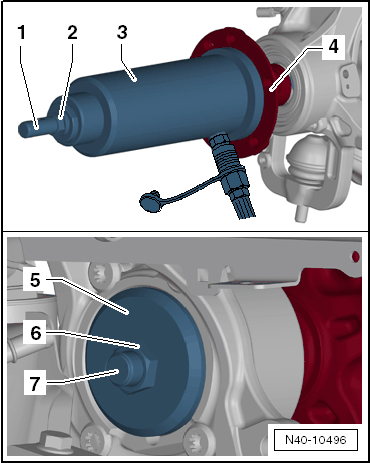

-- Mount the tools as illustrated.

GWWN40-10496Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bearing Installer - Wheel Hub/Bearing Kit - Spindle:T10205/8-1
  2. Bearing Installer - Wheel Hub/Bearing Kit - Nut:T10205/8-2
  3. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit - Pressure Plate: T10205/13  and Bearing Installer - Wheel Hub/Bearing Kit - 4:T10205/4
  4. Wheel hub
  5. Subframe Bushing Assembly Tool Kit - Thrust Piece:T10356/4
  6. Bearing Installer - Wheel Hub/Bearing Kit - Nut:T10205/8-2
  7. Bearing Installer - Wheel Hub/Bearing Kit - Spindle:T10205/8-1

-- Press in wheel hub until stop.
