Wheel Bearing, Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the circlip.

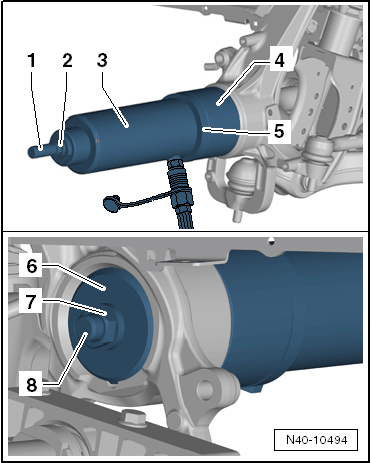

-- Mount the tools as illustrated.

GWWN40-10494Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Please Note:

Offset of Bearing Installer - Wheel Hub/Bearing Kit - 6:T10205/6  Must Point Toward Rear Final Drive.

  1. Bearing Installer - Wheel Hub/Bearing Kit - Spindle:T10205/8-1
  2. Bearing Installer - Wheel Hub/Bearing Kit - Nut:T10205/8-2
  3. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
  4. Bearing Installer - Wheel Hub/Bearing Kit - 5:T10205/5
  5. Bearing Installer - Wheel Hub/Bearing Kit - 4:T10205/4
  6. Subframe Bushing Assembly Tool Kit - Thrust Plate:T10356/4  - The letter B must point to the wheel bearing
  7. Bearing Installer - Wheel Hub/Bearing Kit - Nut:T10205/8-2
  8. Bearing Installer - Wheel Hub/Bearing Kit - Spindle:T10205/8-1

-- Pull out wheel bearing while holding device securely.

Pulling Bearing Inner Race off Wheel Hub

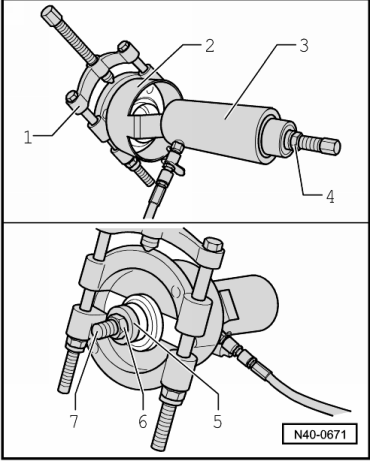

-- Install separating tool behind bearing inner race.

GWWN40-0671Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE: Beveled Parts of Blades Face Bearing Inner Race.
  1. Puller - Kukko Separating Tool - Diameter 25-155mm:15/3
  2. Bearing Installer - Wheel Hub/Bearing Kit - 2:T10205/2
  3. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
  4. Bearing Installer - Wheel Hub/Bearing Kit - Nut:T10205/8-2
  5. Bearing Installer - Wheel Hub/Bearing Kit - 3:T10205/3
  6. Bearing Installer - Wheel Hub/Bearing Kit - Nut:T10205/8-2
  7. Bearing Installer - Wheel Hub/Bearing Kit - Spindle:T10205/8-1
WARNING:

When pulling off, hold tool so that bearing inner race points downward (danger of accident if bearing inner race jumps off at end of pulling process).

-- Pull off wheel hub from bearing inner race.

Wheel Bearing, Pressing In

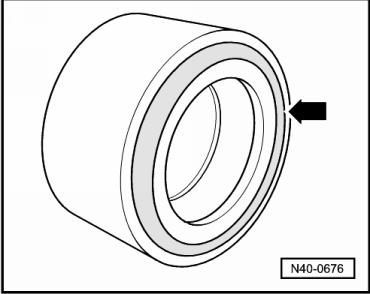

-- Make sure that the rubberized ABS sensor ring -arrow- faces the final drive.

GWWN40-0676Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

If no rubberized ring is visible, check for example with a paper clip, which of the two sides is magnetic. This side must face the final drive when installed.

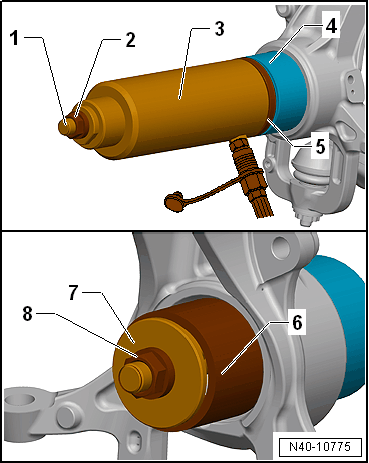

-- Mount the tools as illustrated. While doing so pay attention to the wheel bearing centering mandrel on the Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece:T10205/7  .

GWWN40-10775Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bearing Installer - Wheel Hub/Bearing Kit - Spindle:T10205/8-1
  2. Bearing Installer - Wheel Hub/Bearing Kit - Nut:T10205/8-2
  3. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
  4. Wheel Bearing
  5. Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece:T10205/7
  6. Press Piece - Bushing:3259
  7. Subframe Bushing Assembly Tool Kit Thrust Piece:T10356/8
  8. Bearing Installer - Wheel Hub/Bearing Kit - Nut:T10205/8-2

-- Press wheel bearing in until stop.

-- Install circlip.
