Wheel Bearing, P/N 7P6 407 XXX, Removing And Installing: Removing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Install upper control arm on wheel bearing housing.

-- Remove the brake caliper and engage on body with wire. Refer to FRONT BRAKES, SERVICING .

-- Remove the brake rotor and backing plate.

-- Remove the ABS speed sensor.

Wheel Hub, Removing

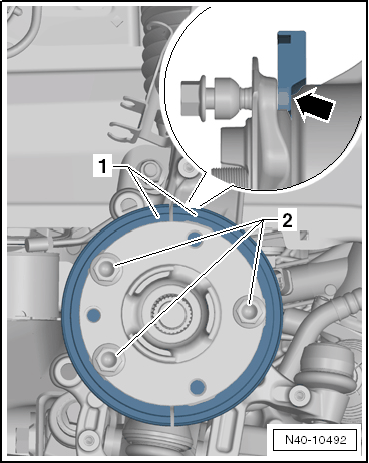

-- Attach Bearing Installer - Wheel Hub/Bearing Kit - 1:T10205/1 -1- to the wheel hub using the wheel bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The wheel bolts -2- must not protrude on the back side of the Bearing Installer - Wheel Hub/Bearing Kit - 1:T10205/1 -arrow-.

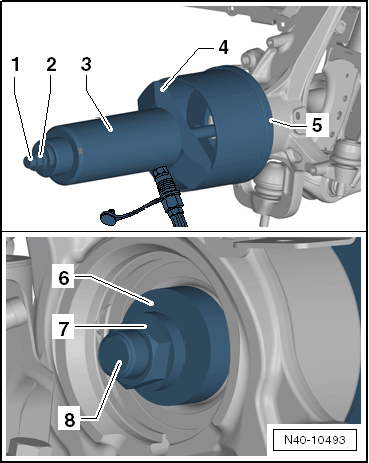

-- Mount the tools as illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bearing Installer - Wheel Hub/Bearing Kit - Spindle:T10205/8-1
Bearing Installer - Wheel Hub/Bearing Kit - Nut:T10205/8-2
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Bearing Installer - Wheel Hub/Bearing Kit - 2:T10205/2
Bearing Installer - Wheel Hub/Bearing Kit - 1:T10205/1
Bearing Installer - Wheel Hub/Bearing Kit - 3:T10205/3
Bearing Installer - Wheel Hub/Bearing Kit - Nut:T10205/8-2
Bearing Installer - Wheel Hub/Bearing Kit - Spindle:T10205/8-1

CAUTION:

Before pressing out, place the Engine and Gearbox Jack:VAS6931 with the universal mount under the cylinder since the cylinder may fall down at the end of the pressing out procedure.
Hold the Hydraulic Press:VAS6178 firmly while pressing out.

-- Pull out wheel hub, hold tool securely.
