Wheel Bearing, P/N 7P0 505 XXX, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note The Following:

-- Position the wheel bearing unit on the gearing of the drive axle.

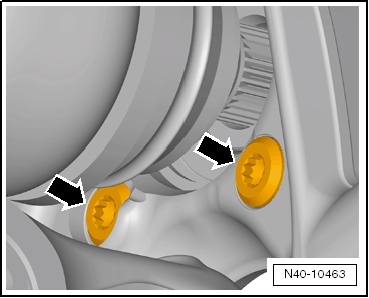

-- Tighten the bolts -arrows- below the drive axle by hand.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

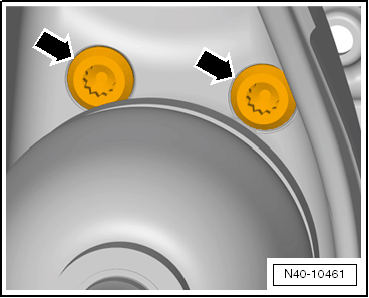

-- Tighten the bolts -arrows- above the drive axle by hand.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the wheel bearing unit bolts.

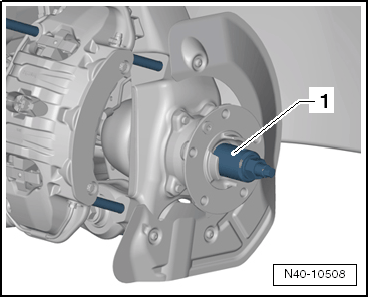

-- Pull in the drive axle.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Drive Axle Fitting Tool:T10206

-- Install the brake caliper and brake rotor. Refer to Front Brakes, Servicing .

-- Loosen the 12-point nut for the drive axle on the wheel hub. Refer to TWELVE-POINT NUT OF DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .

-- Install the wheel and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
