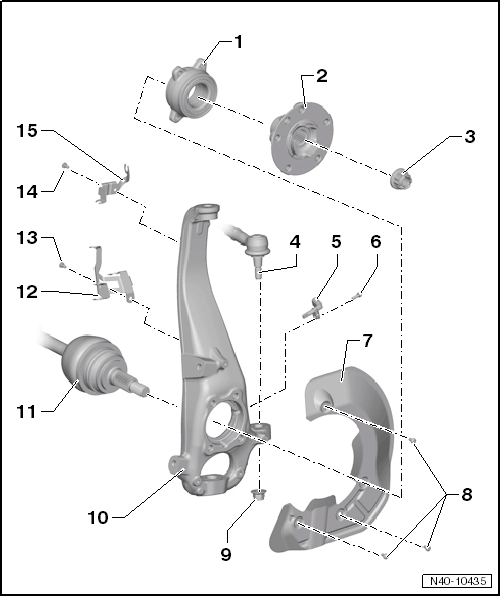

Overview - Wheel Bearing, P/N 7P0 505 XXX: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Wheel bearing part number 7P0 505 XXX may be found on vehicles with 18, 19, 20, or 21 inch wheels. Refer to the Parts Information for allocation.
- Wheel Bearing
- Wheel bearing unit, Removing and installing. Refer to WHEEL BEARING, P/N 7P0 505 XXX, REMOVING AND INSTALLING .
- For servicing the wheel bearing unit. Refer to WHEEL BEARING, SERVICING .CAUTION:
- Avoid contaminating with dirt and damaging the seal when setting down/storing. Refer to AVOID CONTAMINATING WITH DIRT AND DAMAGING THE SEAL WHEN SETTING DOWN/STORING. .
- Wheel Hub
- Wheel bearing unit, Removing and installing. Refer to WHEEL BEARING, P/N 7P6 407 XXX, REMOVING AND INSTALLING .
- For servicing the wheel bearing unit. Refer to WHEEL BEARING, SERVICING .CAUTION:
- Avoid contaminating with dirt and damaging the seal when setting down/storing. Refer to AVOID CONTAMINATING WITH DIRT AND DAMAGING THE SEAL WHEN SETTING DOWN/STORING. .
- Nut
- 500 Nm
- Always replace if removed
- Tie Rod
- Tapered plug must be free of oil and grease
- If necessary, clean with a dry rag, do not use cleaning solvent
- Front Speed Sensor
- Bolt
- 8 Nm
- Cover Plate
- Screws
- 9 Nm
- Quantity: 3
- Nut
- 90 Nm
- Always replace if removed
- Wheel Bearing Housing
- Tapered holes must be free of oil and grease
- If necessary, clean with a dry rag, do not use cleaning solvent
- Removing and installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
- For the allocation. Refer to the Parts Information.CAUTION:
- Avoid contaminating with dirt and damaging the seal when setting down/storing. Refer to AVOID CONTAMINATING WITH DIRT AND DAMAGING THE SEAL WHEN SETTING DOWN/STORING. .
- Drive Axle
- Removing and installing. Refer to DRIVE AXLE .
- Apply a coat of Assembly Paste:G 052 109 A2 to the splines before assembly
- Bracket
- Bolt
- 20 Nm
- Bolt
- 9 Nm
- Bracket
