Stabilizer Bar, Removing And Installing: Installing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note The Following:

-- Install the stabilizer bar clamp -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -arrows- for the stabilizer bar clamp -1- on the subframe by hand.

Vehicles With V6 TDI Engine

-- Install the damper -2- on the stabilizer bar clamp and tighten the retaining bolt by hand.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation For All Vehicles

-- Tighten the bolts for the stabilizer bar clamp to the specified torque.

Vehicles with V6 TDI Engine

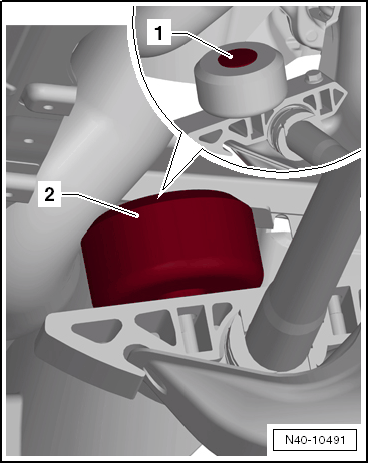

-- Install the cap -1- on the damper -2-.
