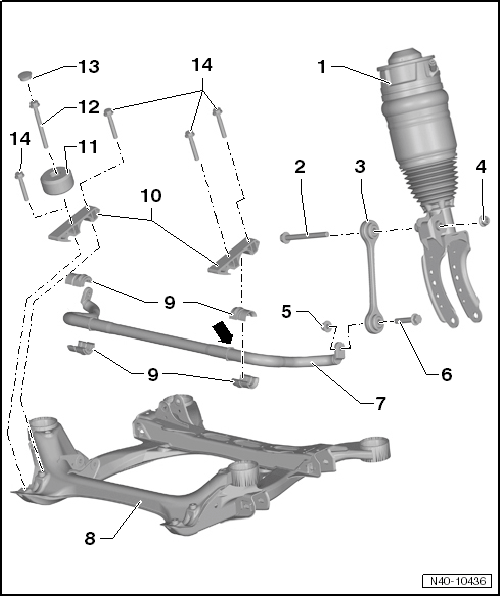

Overview - Stabilizer Bar
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Shock Absorber
- Bolt
- Always replace if removed
- Coupling Rod
- Removing and installing. Refer to COUPLING ROD, REMOVING AND INSTALLING .
- Nut
- 110 Nm
- Always replace if removed
- Nut
- 110 Nm
- Always replace if removed
- Bolt
- Always replace if removed
- Stabilizer Bar
- Removing and installing. Refer to STABILIZER BAR, REMOVING AND INSTALLING .
- Subframe
- Bearing
- Always replace the complete bearings
- Two-part on both sides of the vehicle
- Connected to one another via retaining tabs
- Removing and installing. Refer to STABILIZER BAR MOUNT, REMOVING AND INSTALLING .
- For the allocation. Refer to the Parts Information.
- Clamp
- Vibration Damper
- Only V6 TDI
- For the allocation. Refer to the Parts Information.
- Bolt
- 60 Nm
- M10 x 105
- Only V6 TDI
- For the allocation. Refer to the Parts Information.
- Cover
- Only V6 TDI
- For the allocation. Refer to the Parts Information.
- Bolt
- 60 Nm
- M10 x 62
- Quantity: 4
- Quantity: 3, only V6 TDI
- For the allocation. Refer to the Parts Information.
