Special Tools

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

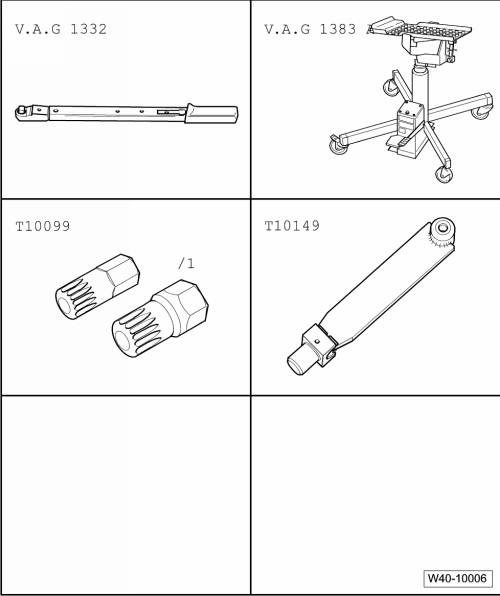

Special Tools And Workshop Equipment Required

Torque Wrench 1332 40-200 Nm :VAG1332
Engine and Gearbox Jack:VAS6931
Bits for VAG 1331/13:T10099
Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine and Gearbox Jack:VAS6931
Hydraulic Press - Bushing Assembly Tool Kit :T10230
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Wrench - Elbow Wrench - 21mm:T10188
Pneumatic/Hydraulic Foot Pump:VAS6179
Torque Wrench 1332 40-200Nm:VAG1332

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Engine and Gearbox Jack:VAS6931
Puller - Kukko Separating Tool - Diameter 25-155mm:15/3
Bearing Installer - Wheel Hub/Bearing Kit:T10205
Pneumatic/Hydraulic Foot Pump:VAS6179

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Press Piece - Multiple Use:VW454
Press Plate:VW401
Press Piece - Rod:VW408A
Torque Wrench 1331 5-50 Nm :VAG1331
Clamping Pliers:VAG1682A
Circlip Pliers:VW161A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

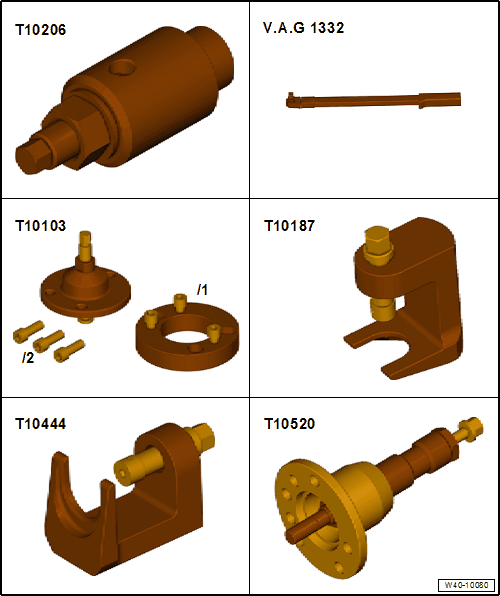

Special Tools And Workshop Equipment Required

Driveshaft Fitting Tool:T10206
Torque Wrench 1332 40-200 Nm :VAG1332
Drive Axle Remover - Adapter Plate:T10103/1 and Drive Axle Remover - Screws:T10103/2
Puller - Ball Joint:T10187
Ball Joint Removal Tool:T10444
Drive Shaft Remover:T10520

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

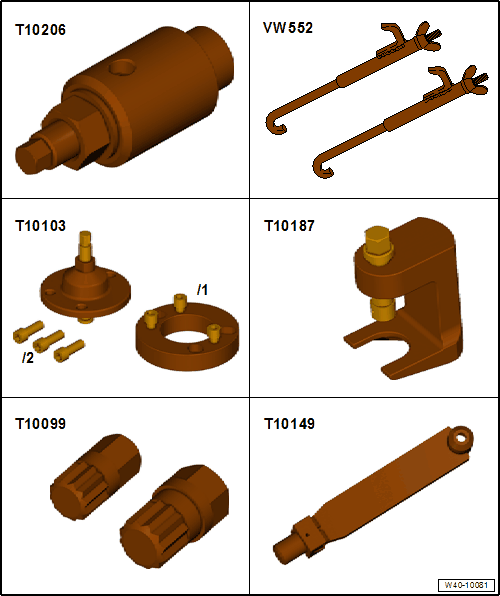

Special Tools And Workshop Equipment Required

Driveshaft Fitting Tool:T10206
Tensioner Hooks (2 pc.):VW552
Drive Axle Remover - Adapter Plate:T10103/1
Puller - Ball Joint:T10187
Bits for V.A.G. 1331/13:T10099
Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Driveshaft Socket - 32mm:T10209
Torque Wrench 1332 40-200 Nm :VAG1332
Torque Wrench 1601:VAG1601
Drive Shaft Remover:T10520

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149
Engine and Gearbox Jack:VAS6931
Torque Wrench 1332 40-200 Nm :VAG1332

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Drive Axle Remover:T10103 or Intake Manifold Release Tool:T10520
Drive Axle Remover - Adapter Plate:T10103/1
Drive Axle Socket - 32mm: T10209
Drive Axle Fitting Tool:T10206
Torque Wrench 1601:VAG1601
Torque Wrench 1332 40-200 Nm :VAG1332
Torque Wrench 1331 5-50 Nm :VAG1331

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Press Plate:VW401
Press Plate:VW402
Press Piece - Multiple Use:VW412
Hydraulic Press - Bushing Assembly Tool Kit :T10230
Puller - Kukko Separating Tool - Diameter 25-155mm :15/3 with Puller - Kukko Quick Action Separating Tool - 25-155mm:17/3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Socket:3165
Press Piece - 28 x 210mm:VW420
Shock Absorber Set:T10001
Spring Compressor Kit:VAG1752
Spring Compressor Kit - Spring Tensioner:VAG1752/1
Spring Compressor Kit - Spring Retainer w/Inserts:VAG1752/5
Spring Compressor Kit - Strut Clamping Block:VAG1752/20
Torque Wrench 1332 40-200 Nm :VAG1332
Kukko 45-2
Ratchet (Commercially Available)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149
Puller - Ball Joint:T10187
Engine and Gearbox Jack:VAS6931
Torque Wrench 1332 40-200 Nm :VAG1332

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Press Piece - Multiple Use:VW412
Slide Hammer Set:VW771
Puller - Driveshaft:T10382

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Assembly Carrier Locating Pins:T10300
Torque Wrench 1331 5-50 Nm :VAG1331
Torque Wrench 1332 40-200 Nm :VAG1332

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Hose Clamps - Up To 25 mm:3094
Tensioner Hooks (2 pc.):VW552
Bits for V.A.G. 1331/13:T10099
Puller - Ball Joint:T10187
Torque Wrench 1331 5-50 Nm :VAG1331
Torque Wrench 1332 40-200 Nm :VAG1332

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Hydraulic Press - Subframe Bushing Tool Kit:T10301
Torque Wrench 1332 40-200 Nm :VAG1332
Engine and Gearbox Jack:VAS6931
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Pneumatic/Hydraulic Foot Pump:VAS6179
Two M14 x.5 x 90 bolts, for example Bolts:N 104 281 01

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Subframe Bushing Tool Kit:3301
Press Plate:VW401
Press Piece - Multiple Use:VW412
Press Piece - Multiple Use:VW426
Wishbone Rubber Mount Assembly Tool:T10219

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Tensioner Hooks (2 pc.):VW552
Ball Joint Removal Tool:T10444
Wrench - Elbow Wrench - 21mm:T10188
Torque Wrench 1332 40-200 Nm :VAG1332

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Wrench - Strut Socket - 21mm:3186
Torque Wrench 1332 40-200 Nm :VAG1332
Release Tool Set:VAS1978/35

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine and Gearbox Jack:VAS6931
Tensioning Strap:T10038
Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Tensioner Hooks (2 pc.):VW552
Torque Wrench 1332 40-200 Nm :VAG1332
Engine and Gearbox Jack:VAS6931
14 mm socket Bits for V.A.G. 1331/13:T10099/1
Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149

Special Tools And Workshop Equipment Required

Subframe Bushing Assembly Tool Kit:T10356

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Counterhold - Kit - Multiple Use:T10172

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Drive Axle Socket - 32mm: T10209

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Brake Caliper Assembly Pins:T10439

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Spring Compressor Kit - Spring Retainer with Inserts:VAG1752/3A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Scissor Lift Table:VAS6131

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Trim Removal Wedge:3409

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Spring Compressor Kit - Spring Retainer w/Inserts:VAG1752/7
Counterhold - Kit - Adapter 10:T10172/10
Subframe Locking Pin (2 pc.):T10463
Scissor Lift Table - Touareg Set - Left Support:VAS6131/6-2L
Scissor Lift Table - Touareg Set - Right Support:VAS6131/6-2R
Scissor Lift Table - Touareg Set - Left Axle Support:VAS6131/6-3L
Scissor Lift Table - Touareg Set - Right Axle Support:VAS6131/6-4R
Scissor Lift Table - Touareg Set - Support Quantity 2:VAS6131/6-5
Two M14 x.5 x 90 bolts, for example Bolts:N 104 281 01
