SUBFRAME, Securing, Vehicles With V8 Engines: Notes

Special Tools And Workshop Equipment Required

• Counterhold - Kit - Multiple Use:T10172
• Counterhold - Kit - Adapter 10:T10172/10
• Subframe Locking Pin (2 pc.):T10463
• Torque Wrench 1331 5-50 Nm :VAG1331
• Torque Wrench 1332 40-200 Nm :VAG1332

-- Remove the noise insulation below the engine/transmission. Refer to NOISE INSULATION .

-- Unscrew one of the rear bolts of the subframe -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Subframe Locking Pin (2 pc.):T10463  -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the Subframe Locking Pin (2 pc.):T10463  to 30 Nm.

-- The same procedure must be performed for the second rear bolt of the subframe.

The subframe position is now secured.

The removal of the Subframe Locking Pin (2 pc.):T10463  is performed in reverse order.

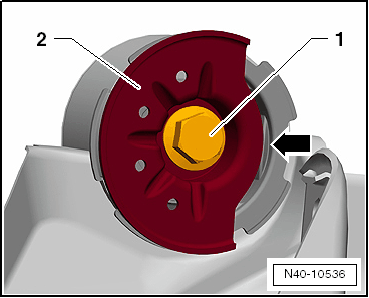

-- Install the subframe with new bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

It must be ensured that the thrust washer -2- is in the correct installation position.

-- The open side -arrow- of the thrust washer -2- must point opposite the direction of travel.

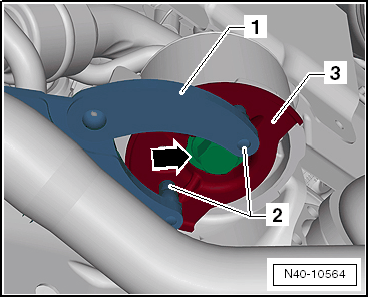

-- When tightening the bolt -arrow-, hold the thrust washer -3- in place using a Counterhold - Multiple Use:T10172A  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Counterhold - Kit - Multiple Use:T10172
2. Counterhold - Kit - Adapter 10:T10172/10
3. Thrust Washer
