SUBFRAME, Securing, Vehicles With V6 Engines: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Assembly Carrier Locating Pins:T10300
Torque Wrench 1331 5-50 Nm :VAG1331
Torque Wrench 1332 40-200 Nm :VAG1332

-- Remove the noise insulation below the engine/transmission. Refer to NOISE INSULATION .

-- Unscrew one of the rear bolts of the subframe -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

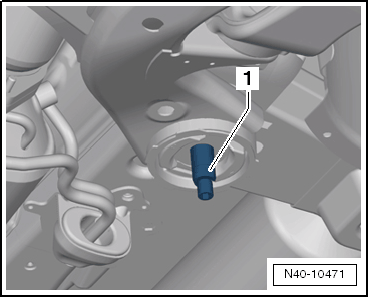

-- Install the Assembly Carrier Locating Pins:T10300 -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Screw in the Assembly Carrier Locating Pins:T10300 by hand to the marking -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the Assembly Carrier Locating Pins:T10300 to 30 Nm while counter-holding the sleeve at the wrench surfaces using an open-end wrench to prevent it from turning.

-- The same procedure must be performed for the second rear bolt of the subframe.

The subframe position is now secured.

The removal of the Assembly Carrier Locating Pins:T10300 is performed in reverse order.
