SUBFRAME, Repairing, Bonded Rubber Mount In The Forward Direction Of Travel: Removing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles With An Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

Continuation For All Vehicles

-- Remove the noise insulation below the engine/transmission. Refer to NOISE INSULATION .

-- Disconnect the driveshaft from the front final drive and tie up. Refer to DRIVESHAFT [For transmission(s) 0C8] .

-- If equipped, remove screws -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove heat shield -1- on steering gear -2-.

-- Turn the steering gear to the right to the stop.

-- Remove the bolt -arrow- of the universal joint -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the universal joint -1- from the power steering gear -2-.

-- Unscrew the threaded connection -1- for the coupling rod of the side on which the bonded rubber mount is to be replaced.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles With V6 TDI Engine

NOTE:

In vehicles with a V6 TDI engine, a damper is installed on the right side.

-- Pry the cap -1- off of the damper -2- and unscrew the securing bolt.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the damper -2- from the stabilizer bar clamp.

Continuation For All Vehicles

-- Unscrew the bolts -arrows- for the stabilizer bar clamp -1- at the subframe on the side on which the bonded rubber mount is to be replaced.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the stabilizer bar clamp -1-.

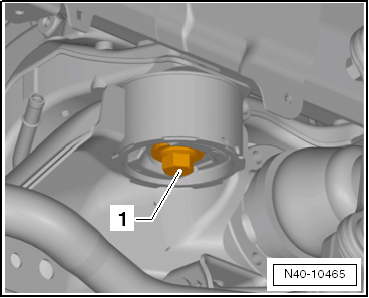

-- Remove the front bolts -1- for the subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the Engine and Gearbox Jack:VAS6931 under the subframe.

-- Lower the subframe -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

a - maximum 40 mm

-- Screw in two M14 x 1.5 x 90 bolts, for example Bolts:N 104 281 01 to secure the engine carrier to the body on the left and right -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Pressing Out the Bonded Rubber Bushing

-- Set the Hydraulic Press - Subframe Bushing Tool Kit - Support Ring:T10301/8 -1- in place, so that the narrow side -arrow- faces toward the subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The Hydraulic Press - Subframe Bushing Tool Kit - Support Ring:T10301/8 Must Be Lightly Set in Place and Must Not Be Tilted.

-- Mount the tools as illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hydraulic Press - Subframe Bushing Tool Kit - Thrust Piece:T10301/5
Hydraulic Press - Subframe Bushing Tool Kit - Support Ring:T10301/8
Hydraulic Press - Subframe Bushing Tool Kit - Tube:T10301/3
Hydraulic Press - Subframe Bushing Tool Kit - Spacer:T10301/9
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Hydraulic Press - Subframe Bushing Tool Kit - Nut:T10301/2
Hydraulic Press - Subframe Bushing Tool Kit - Spindle:T10301/1

CAUTION:

Before pressing out, place the Engine and Gearbox Jack:VAS6931 with the universal mount under the cylinder since the cylinder may fall down at the end of the pressing out procedure.
Hold the Hydraulic Press:VAS6178 firmly while pressing out.

-- Press out the bonded rubber bushing.

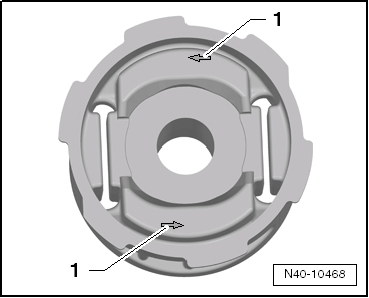

Installed Location

One of the arrows -1- must point in direction of travel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
