Installing the Bonded Rubber Bushing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

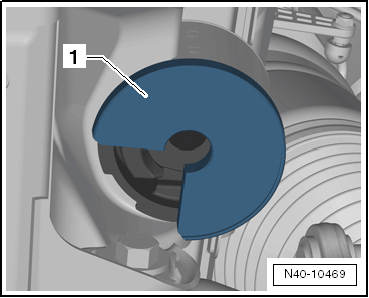

-- Install the Hydraulic Press - Subframe Bushing Tool Kit - Thrust Plate:T10301/10  -1- with the open side to the subframe.

GWWN40-10469Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
CAUTION:

When pressing in bonded rubber bushing, make sure that Hydraulic Press - Subframe Bushing Tool Kit - Thrust Piece:T10301/10  is in correct position to prevent subframe from damage.

-- Mount the tools as illustrated.

GWWN40-10470Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Hydraulic Press - Subframe Bushing Tool Kit - Thrust Piece:T10301/7
  2. Bonded Rubber Bushing
  3. Hydraulic Press - Subframe Bushing Tool Kit - Thrust Plate: T10301/10
  4. Hydraulic Press - Subframe Bushing Tool Kit - Spacer:T10301/11
  5. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
  6. Hydraulic Press - Subframe Bushing Tool Kit - Nut:T10301/2
  7. Hydraulic Press - Subframe Bushing Tool Kit - Spindle:T10301/1

-- Press in bonded rubber bushing until shoulder lies >>gap-free<< at subframe sleeve.
