SUBFRAME, Bonded Rubber Mount In The Backward Direction Of Travel For V8 Engines, Repairing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles With An Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

Continuation For All Vehicles

-- Remove the noise insulation below the engine/transmission. Refer to NOISE INSULATION .

-- If equipped, remove screws -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove heat shield -1- on steering gear -2-.

-- Turn the steering gear to the right to the stop.

-- Remove the bolt -arrow- of the universal joint -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the universal joint -1- from the power steering gear -2-.

-- Unscrew the rear bolts -arrow- for the subframe and remove the thrust washers -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

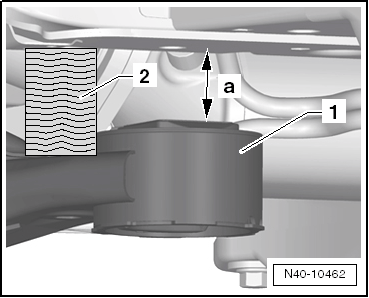

-- Lower the subframe -1- and clamp a piece of wood -2- between the underbody and subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

a - maximum 40 mm

Pressing out the Bonded Rubber Bushing

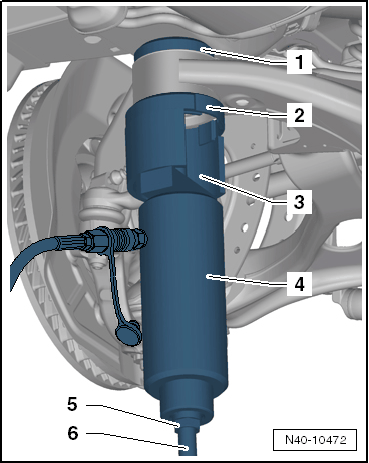

-- Mount the tools as illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hydraulic Press - Subframe Bushing Tool Kit - Thrust Piece:T10301/5
Hydraulic Press - Bushing Tool Kit - Tool T10301/14:T10301/14
Hydraulic Press - Bushing Tool Kit - Tool T10301/13:T10301/13
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Hydraulic Press - Subframe Bushing Tool Kit - Nut:T10301/2
Hydraulic Press - Subframe Bushing Tool Kit - Spindle:T10301/1

CAUTION:

Before pressing out, place the Engine and Gearbox Jack:VAS6931 with the universal mount under the cylinder since the cylinder may fall down at the end of the pressing out procedure.
Hold the Hydraulic Press:VAS6178 firmly while pressing out.

-- Press out the bonded rubber bushing.

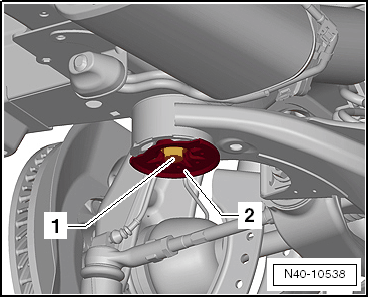

Installed Location

The cams -arrows A- must point in the longitudinal vehicle direction.

The cutouts -arrows B- must point in the direction of travel.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing the Bonded Rubber Bushing

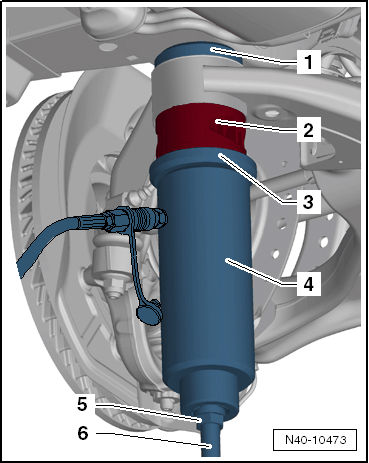

-- Mount the tools as illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hydraulic Press - Subframe Bushing Tool Kit - Thrust Piece:T10301/7
Bonded Rubber Bushing
Hydraulic Press - Subframe Bushing Tool Kit - Thrust Plate:T10301/15
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Hydraulic Press - Subframe Bushing Tool Kit - Nut:T10301/2
Hydraulic Press - Subframe Bushing Tool Kit - Spindle:T10301/1

-- Press in bonded rubber bushing until shoulder lies >>gap-free<< at subframe sleeve.
