Pressing Off

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the upper control arm. For vehicles with a steel spring shock absorber. Refer to UPPER CONTROL ARM, REMOVING AND INSTALLING, VEHICLES WITH STEEL SPRING SHOCK ABSORBERS .

-- Remove the upper control arm. For vehicles with air spring shock absorber. Refer to UPPER CONTROL ARM, VEHICLES WITH AN AIR SPRING SHOCK ABSORBER, REMOVING AND INSTALLING .

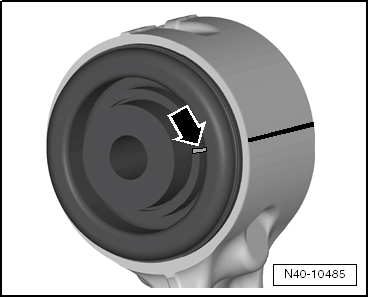

-- Mark the position of the bonded rubber mount on the basis of the slot -arrow- with respect to the upper control arm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

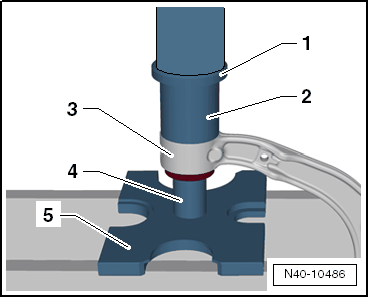

-- Press out bonded rubber mount.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Press Piece - Multiple Use:VW412
Subframe Bushing Tool Kit - Thrust Piece 4:3301/4
Upper Control Arm
Press Piece - Multiple Use:VW426
Press Plate:VW401
