Pressing In

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Apply Installation Lubricant:G 294 421 A1 onto the outside of the bonded rubber bushing.

-- Press in the bonded rubber mount.

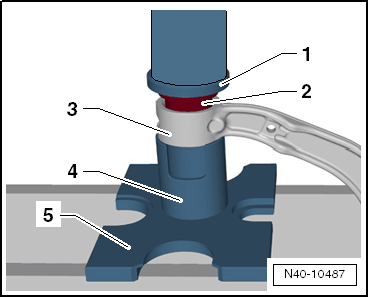

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Press Piece - Multiple Use:VW412
Bonded Rubber Bushing
Upper Control Arm
Wishbone Rubber Mount Assembly Tool - Tube:T10219/1 with the cutout upward toward the control arm
Press Plate:VW401

-- Continue to press the inner core of the bonded rubber mount until the bead -arrow- slips out of the control arm.

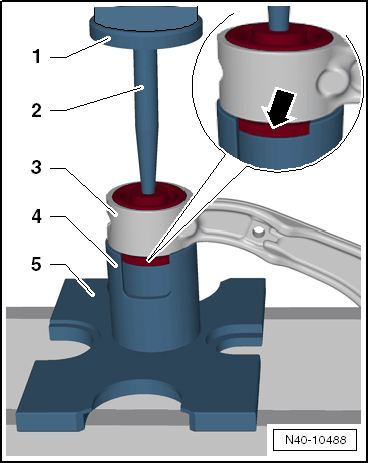

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Press Piece - Multiple Use:VW412
Wishbone Rubber Mount Assembly Tool-Drift:T10219/2
Upper Control Arm
Wishbone Rubber Mount Assembly Tool - Tube:T10219/1 with the cutout upward toward the control arm
Press Plate:VW401

-- Install the upper control arm. For vehicles with a steel spring shock absorber. Refer to UPPER CONTROL ARM, REMOVING AND INSTALLING, VEHICLES WITH STEEL SPRING SHOCK ABSORBERS .

-- Install the upper control arm. For vehicles with an air spring shock absorber. Refer to UPPER CONTROL ARM, VEHICLES WITH AN AIR SPRING SHOCK ABSORBER, REMOVING AND INSTALLING .
