Pressing In

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

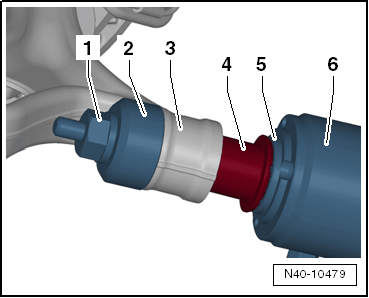

-- Install the tools on the lower control arm as shown in the figure.

GWWN40-10479Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Hydraulic Press - Bushing Assembly Tool Kit - Nut:T10230/2
  2. Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/8
  3. Lower Control Arm
  4. Bonded Rubber Bushing
  5. Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/7
  6. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13

-- Press in the bonded rubber mount to the stop.

By doing this, core of bonded rubber bushing is pressed in by Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/6  more than might be required. However, this is necessary so that bonded rubber bushing lip makes contact with control arm on outside. After loosening Hydraulic Press:VAS6178  , bonded rubber bushing core settles into correct position.
