Pressing Off

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

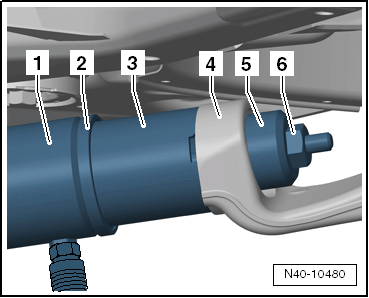

-- Install the tools on the lower control arm as shown in the figure.

GWWN40-10480Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
  2. Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/7
  3. Hydraulic Press - Bushing Assembly Tool Kit - Tube:T10230/9
  4. Lower Control Arm
  5. Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/15
  6. Hydraulic Press - Bushing Assembly Tool Kit - Spindle:T10230/1  and Hydraulic Press - Bushing Assembly Tool Kit - Nut: T10230/2
CAUTION:
  • Before pressing out, place the Engine and Gearbox Jack:VAS6931  with the universal mount under the cylinder since the cylinder may fall down at the end of the pressing out procedure.
  • Hold the Hydraulic Press:VAS6178  firmly while pressing out.

-- Press out the bonded rubber bushing.
