Pressing In

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

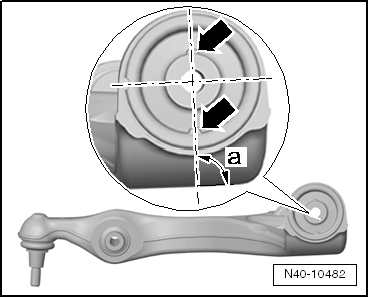

-- Align the bonded rubber mount so that the cams -arrows- point straight downward.

GWWN40-10482Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The imaginary center line should be at approximately a 90° angle in relation to the lower edge of the control arm.

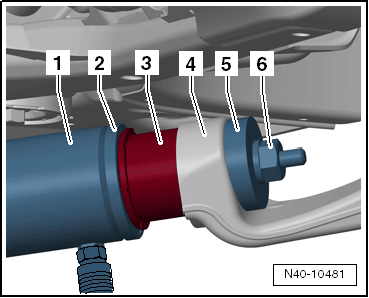

-- Install the tools on the lower control arm as shown in the figure.

GWWN40-10481Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
  2. Hydraulic Press - Bushing Assembly Tool Kit - Press Plate:T10230/12
  3. Bonded Rubber Bushing
  4. Lower Control Arm
  5. Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/16
  6. Hydraulic Press - Bushing Assembly Tool Kit - Spindle:T10230/1  and Hydraulic Press - Bushing Assembly Tool Kit - Nut: T10230/2

-- Install the bonded rubber bushing.
