Lower Control Arm, Repairing - Pressing The Bonded Rubber Mount In And Out, Caster Adjusting Bolt Connection: Removing: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles With An Air Spring Shock Absorber
-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .
Continuation For All Vehicles
-- Raise the vehicle.
Vehicles With An Air Spring Shock Absorber
-- Fill the air spring shock absorber with the Vehicle Diagnostic Tester.
Continuation For All Vehicles

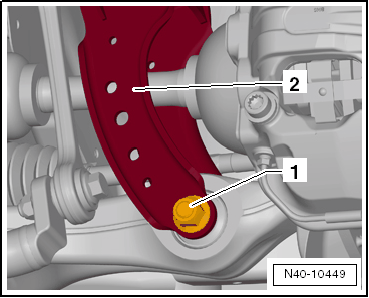

-- Unscrew the bolt -1- for the shock absorber -2- on the control arm.

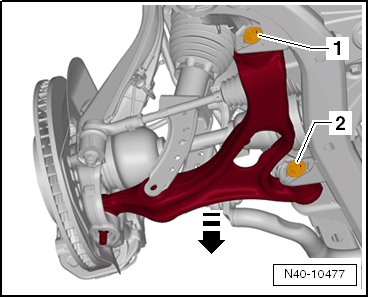

-- Remove the threaded connection -1-.
-- Remove the threaded connection -2-.
-- Lower the lower control arm in the direction of the -arrow-.
