Pressing Off

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

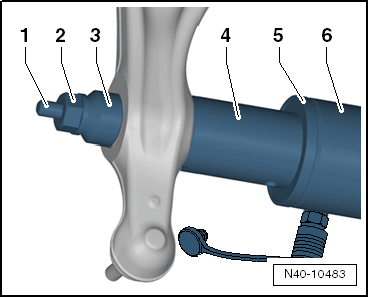

-- Install the tools on the lower control arm as shown in the figure.

GWWN40-10483Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Hydraulic Press - Bushing Assembly Tool Kit - Spindle:T10230/1
  2. Hydraulic Press - Bushing Assembly Tool Kit - Nut:T10230/2
  3. Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/13
  4. Hydraulic Press - Bushing Assembly Tool Kit - Tube:T10230/5
  5. Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/7
  6. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13

-- Press out the bonded rubber bushing.
