Pressing In

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

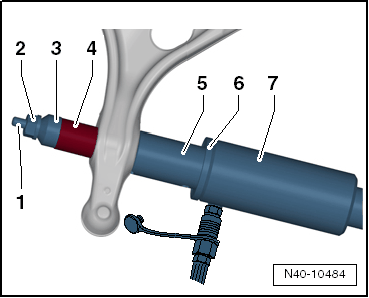

-- Install the tools on the lower control arm as shown in the figure.

GWWN40-10484Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Hydraulic Press - Bushing Assembly Tool Kit - Spindle:T10230/1
  2. Hydraulic Press - Bushing Assembly Tool Kit - Nut:T10230/2
  3. Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/13
  4. Bonded Rubber Bushing
  5. Hydraulic Press - Bushing Assembly Tool Kit - Tube:T10230/5
  6. Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/7
  7. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13

-- Press in bonded rubber bushing flush.

-- Use clear areas in Hydraulic Press - Bushing Assembly Tool Kit - Tube:T10230/5  to observe pressing sequence.

-- Install the lower control arm. Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING .

-- Install the wheel and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .

-- Perform vehicle alignment. Refer to WHEEL ALIGNMENT .
