Air Spring Shock Absorber, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

During Assembly Work, Make Sure That No Indentations Form on the Protective Boot of the Air Spring Shock Absorber!

-- Remove The Engine Compartment Cover

Right Air Spring Shock Absorber in Vehicles with a Diesel Engine

-- Remove the fuel filter over the air spring shock absorber. .

Left Air Spring Shock Absorber in Vehicles with a Hybrid Drive

-- Unclip the lines -1- from the brackets -arrows-.

-- Remove the nuts -arrows-.

Continuation For All Vehicles

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

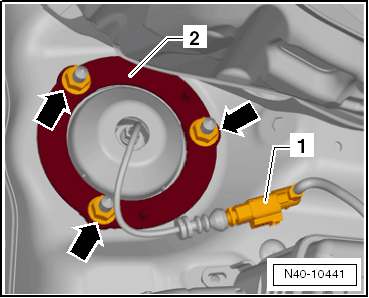

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unscrew the nuts -arrows- and remove the ring -2-.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

-- Fill the air spring shock absorber with the Vehicle Diagnostic Tester.

-- Using the Tensioner Hooks (2 pc.):VW552 -1-, hook the upper control arm to the body and pretension it slightly.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the pin -2- for the Left Front Level Control System Sensor -G78- /Right Front Level Control System Sensor -G289- downward and unclip the coupling rod at the upper control arm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air line from the pressure-holding valve -1- and seal both connections.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the drive axle from the front final drive.

-- Remove the upper brake line bracket -1- from the wheel bearing housing -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the harness connector -1- and cable out of the bracket -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and the lower line hose bracket -3- from the wheel bearing housing.

-- Turn the wheel hub until one of the holes for the wheel bolts is on top.

-- Install the Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149 with a wheel bolt.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Support the wheel bearing housing.

-- Loosen the nut on the conical pin, but do not unscrew yet.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

To Protect Thread, Screw Nut On Pin A Few Turns.

-- Press out the upper control arm and unscrew the nut.

Puller - Ball Joint:T10187

-- Pivot the wheel bearing housing with the Engine/Gearbox Jack Adapter - Wheel Hub Support: T10149 and Engine and Gearbox Jack:VAS6931 to the outside.

-- Unscrew the threaded connection -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unscrew the bolt -1- for the air spring shock absorber -2- on the control arm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the upper control arm upward, press the air spring shock absorber together and remove.
