Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

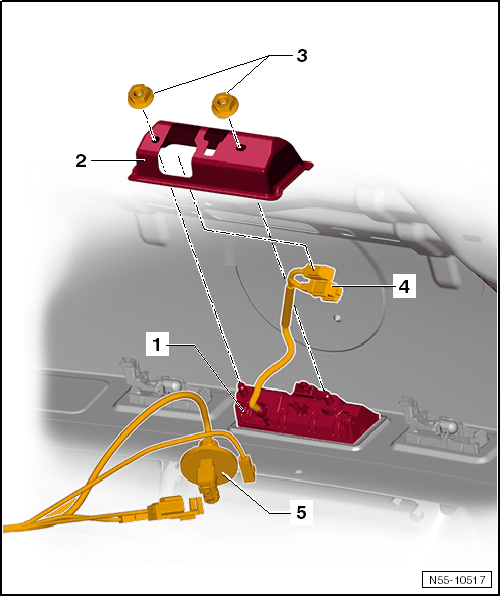

Fig 1: Release Button Removing/Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear lid trim panel. Refer to REAR DOOR TRIM PANELS .

-- Depending on the equipment, disconnect the harness connectors -4 and 5- from the release button -1-.

-- Remove the bolts -3-.

-- Remove the protective cap -2-.

-- Remove the release element -1- from the rear lid.
