Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The central harness connectors -5- are on the D-pillar.

Fig 1: Rear Lid Trim Clip Locations

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear lid trim panel. Refer to REAR DOOR TRIM PANELS .

-- Disconnect harness connectors -arrows-.

-- Remove the high-mounted brake light. Refer to High-Mounted Brake Lamp Bulb -M25- .

-- Pull the lines -3- and hoses -4- out of the rear lid -1-.

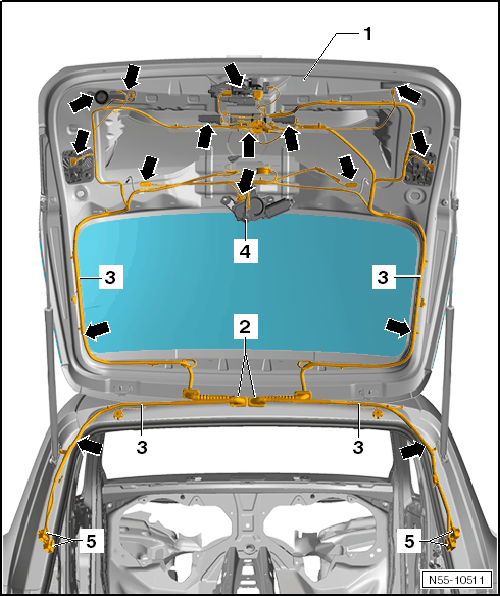

Fig 2: Rear Lid Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolts -3- at the left and right hinges. Do not remove.

A second technician is required for the rest of the removal procedure.

-- Depending on the equipment, remove the gas-filled strut -2- or remove the rear lid drive motor -2-. Refer to GAS-FILLED STRUT or REAR LID DRIVE MOTOR .

-- Remove the bolts -3- and the rear lid -1-.

NOTE:

Do not kink or pinch the lines -4-.

The central harness connectors -5- are on the D-pillar.
