Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

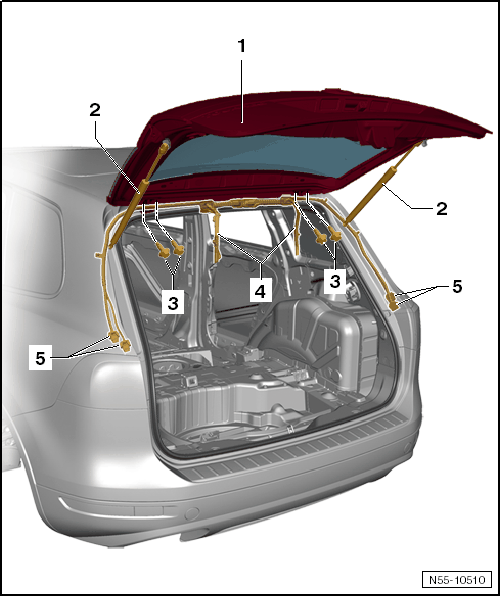

Fig 1: Rear Lid Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install the rear lid -1- in reverse order of removal.

-- Tightening Specification for bolts -3- : 10 Nm.

-- Adjust rear lid -1-. Refer to REAR LID, ADJUSTING .

-- Install the lines and hoses -4-.

-- Depending on the equipment, install the gas-filled strut or rear lid drive motor -2-.

Before the rear lid -1- is closed, perform a function test on the unlocking components.
