Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

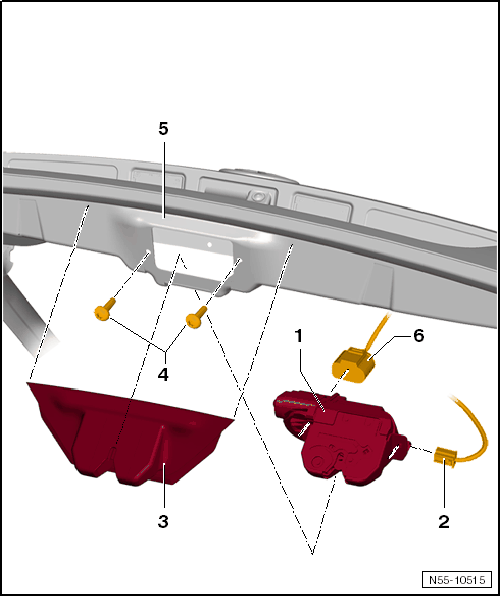

Fig 1: Rear Lid Lock Removing/Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear lid trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Remove the cover -3-.

-- Depending on the equipment, disconnect the harness connectors -2 and 3- from the lid lock -1-.

-- Remove the bolts -4- and the latch -1- from the rear lid -5-.
