Sensor Strip, Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Only use Adhesive Remover:D 002 000 10 .

Make sure the adhesive surfaces are free of dust and grease.

Only remove the protective film right before assembly. Processing temperature approximately 21 °C (70 °F).

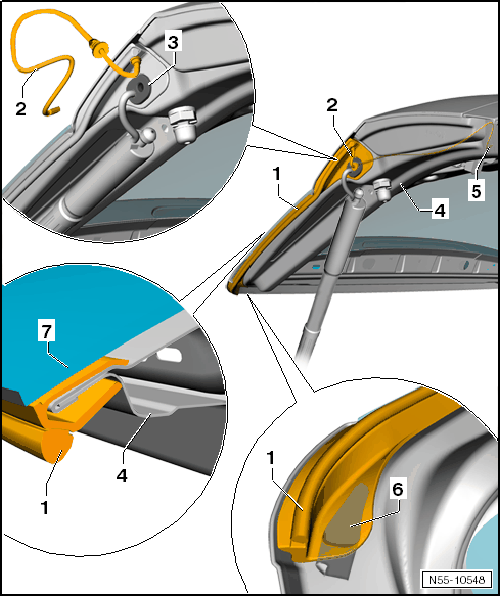

Fig 1: Rear Lid Drive Motor Sensor Strip Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the sensor strip -1- and insert it between the rear lid -4- and rear window -7-.

-- Pull the line -2- through the rubber grommet -3- into the rear lid.

-- Connect the connector -5-.

-- Remove the protective foil from the adhesive tape -6- and press on with force.
