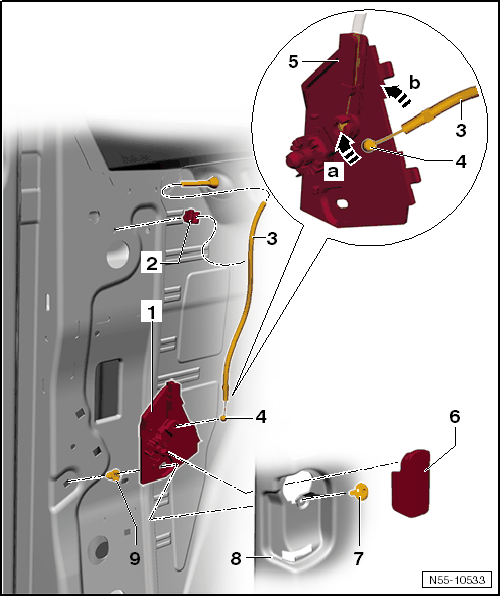

Overview
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- Clip
- Release Cable
- Installing:
-- Install the ball -4- of the release cable in the bracket -5- in direction of -arrow a- and secure the release cable in the mounting bracket in direction of -arrow b-.
- Installing:
- Release Cable Ball
- Component of the release cable
- Retainer
- Mounting bracket component
- Release Lever
- Removing and installing. Refer to REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 2
- A-Pillar Lower Trim Panel
- Insert Nut
- Quantity: 1
