Overview - Hood

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

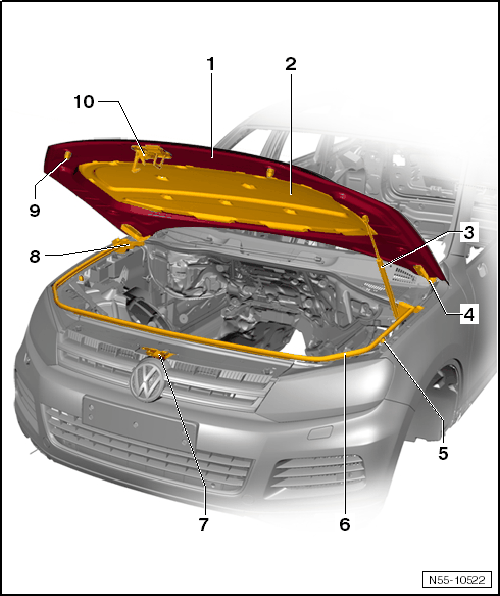

Fig 1: Exploded View Of Hood

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hood
- Removing and installing. Refer to HOOD, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
Insulation
- Removing and installing. Refer to INSULATION, REMOVING AND INSTALLING .
Gas-Filled Strut
- Removing and installing. Refer to GAS-FILLED STRUT, REMOVING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
Hinge
- Removing and installing. Refer to HOOD HINGE, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
Adjusting Buffer
- Left and right
- On the body
Seal
Lid Latch
- Removing and Installing
Foam Piece
- Left and right
Adjusting Buffer
- Left and right
- Inside the hood
Catch
