Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

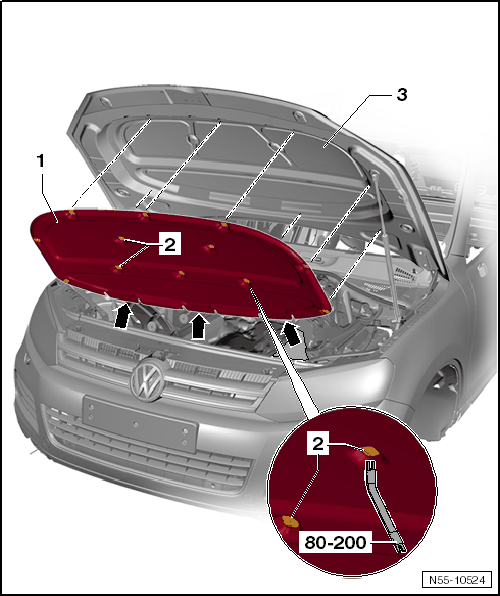

Fig 1: Insulation Removing/Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

When installing the noise insulation -1-, be sure to install the retaining clips -2- with the wide side facing out.

-- Slide the insulation -1- with the mounting tabs into the elongated holes -arrows-.

-- Lock all retaining clips -2- in the hood -3-.
