Hinges, Adjusting
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

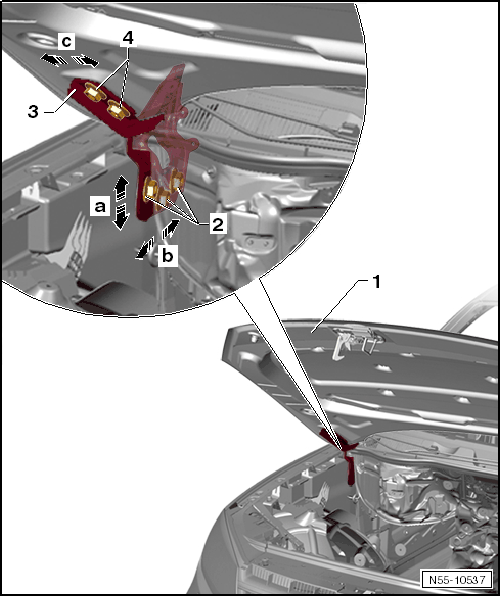

-- Loosen, but do not remove, the left and right bolts -4- on the hood hinges -3- and then align the hood -1- between the fenders.
-- Make sure the gap dimensions are even. Refer to appropriate service information.
-- Apply corrosion protection to the hinge and to the bolts -3- after adjusting.
If the adjustment options are not sufficient, the hinge can be adjusted.
-- Loosen, but do not remove, the left and right bolts -2- on the hood hinges -3- and then align the hood -1- between the fenders.
