Catch, Adjusting

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

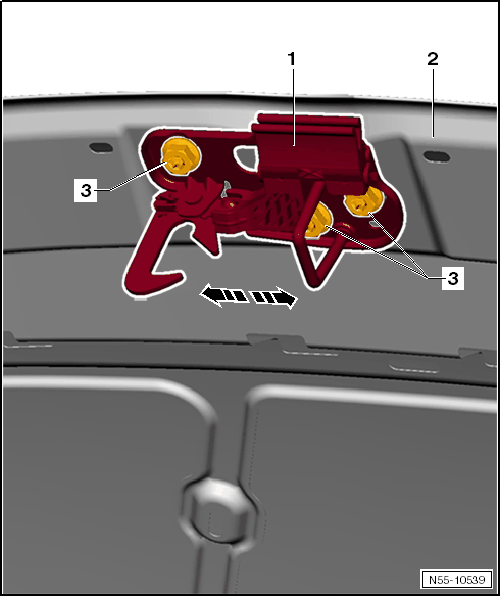

Fig 1: Hood Striker Pin, Adjusting
GWWN55-10539Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolts -3-.

-- The striker pin -1- can now be adjusted in the oversized holes -arrows-.

-- Bolt Tightening Specification -2- : 12 Nm
