Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

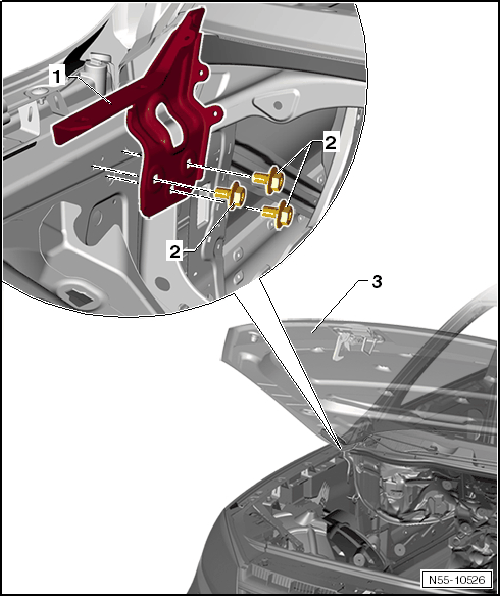

Fig 1: Hood Hinge Removing/Installing
GWWN55-10526Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The hinge -1- is installed in reverse order of removal.

-- Install the hood. Refer to INSTALLING .

-- Bolt -2- Tightening Specification: 20 Nm.
