Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

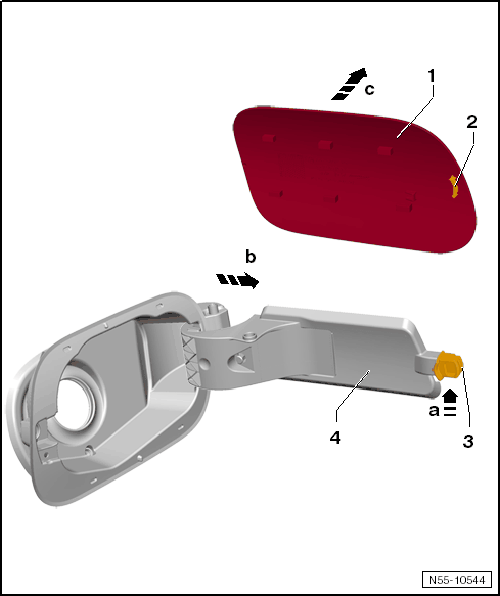

The fuel filler door unit -4- remains installed.
-- Release the locking mechanism -3- in direction of -arrow a-.
-- Slide the fuel filler door in the direction of -arrow b-.
-- Remove the fuel filler door from the fuel filler door unit in direction of -arrow c-.
