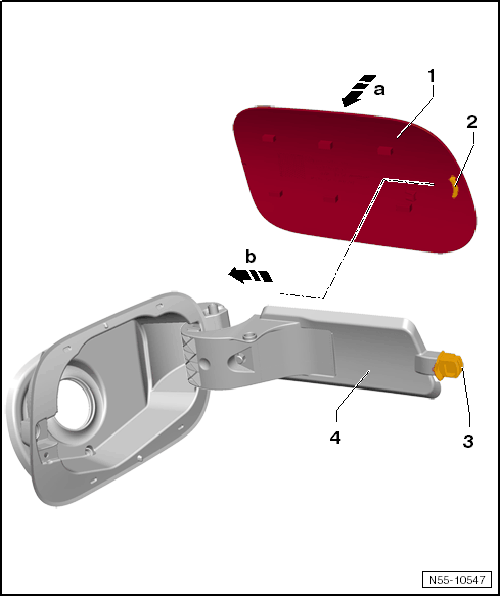

Fig 1: Installing Fuel Filler Door
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-- Place the fuel filler door -1- on the fuel filler door unit -4- -arrow a-.
-- Slide the fuel filler door in the direction of -arrow b- until the retaining hooks -2 and 3- engage with one another.
