Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools And Workshop Equipment Required
- Radio Removal Tool:T10057

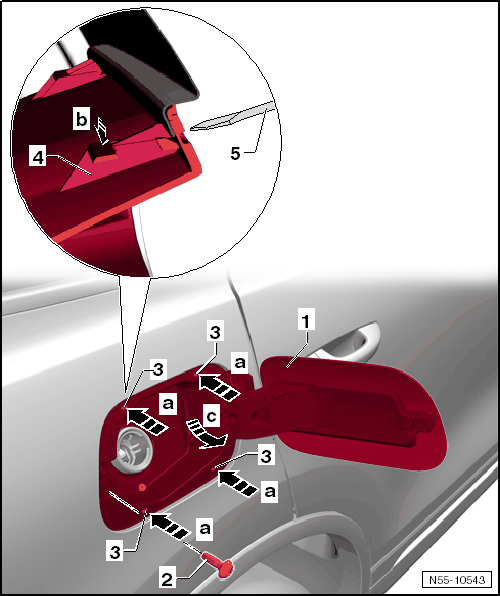

-- Remove the fuel filler cap.
NOTE:
Use the Radio Removal Tool:T10057 instead of the screwdriver -5- shown.
Because of the small openings the hooks will not be damaged.
-- Remove the bolt -2-.
-- Fold back the fuel filler tube rubber grommet.
-- With the Radio Removal Tool:T10057 position the fuel filler door unit on the marled positions -2- and push through -a arrows-.
-- Guide the Radio Removal Tool: T10057 through this opening -3- to the notch.
The hooks -4- are released -arrow b-.
-- Tilt the fuel filler door unit -1- out of the side panel -arrow c-.
