Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

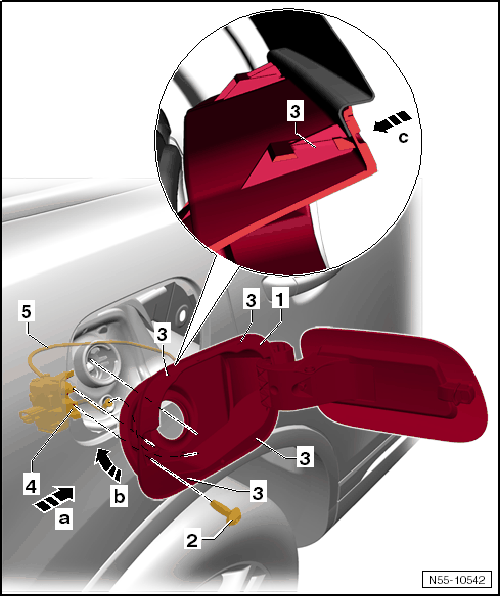

Fig 1: Installing Fuel Filler Door Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The actuator -4- is installed.

-- Insert the water drain hose through the opening in the fuel filler door unit and pull the water drain hose through to the stop.

-- Insert the water drain hose into the side panel.

-- Insert the fuel filler door unit -1- first with the hinge side into the side panel -arrow a-.

-- Then tilt the fuel filler door unit completely into the side panel -arrow b-.

-- Press the fuel filler door unit into the side panel -arrow c- until the retaining hooks -3- are locked.

NOTE:

Make sure the hooks lock correctly in the side panel.

-- Pull the rubber grommet over the fuel filler tube and tighten the bolt.

Screw Tightening Specification -2- : 1.5 Nm.
