Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

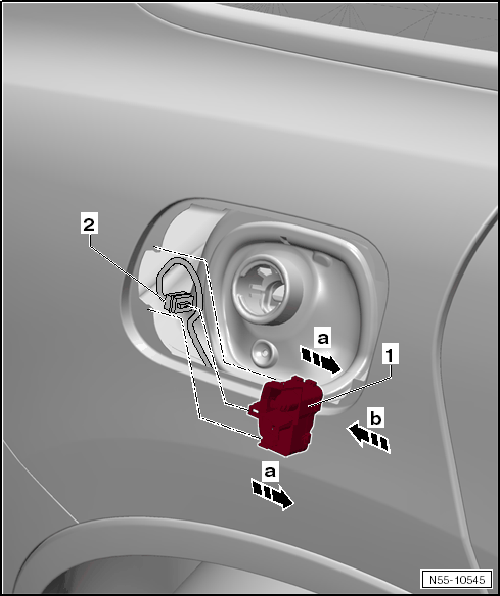

Fig 1: Actuator Removing/Installing
GWWN55-10545Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fuel filler door. Refer to FUEL FILLER DOOR UNIT, REMOVING AND INSTALLING .

-- Disconnect the harness connector -2- in the luggage compartment under the tail lamp.

-- Pull the actuator -1- with the line and rubber grommet out of the side panel -arrows a-.
