Overview - Trailer Hitch
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

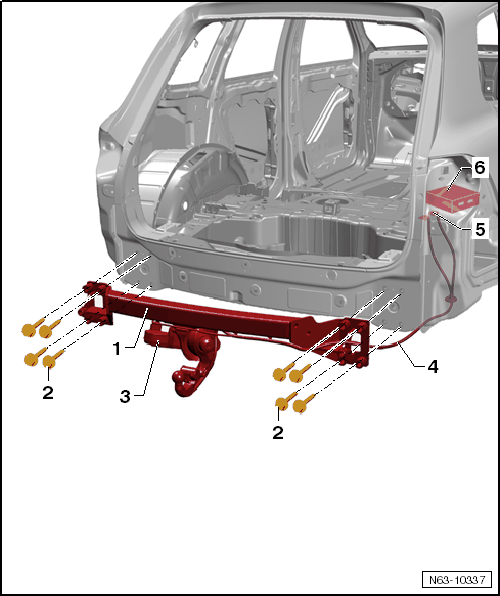

NOTE:
Depending on the version, slight deviations must be considered.
The tightening specifications only apply to factory-installed trailer hitches.
If a different trailer hitch is installed, ask the manufacturer for the tightening specifications.
- Trailer Hitch
- Trailer hitch with electrically triggered ball head
- Bolts
- 110 Nm
- Quantity: 4 on each side
- Always replace bolts after removing them.
- Wiring Harness
- Ball Head
- Connector
- Control Module

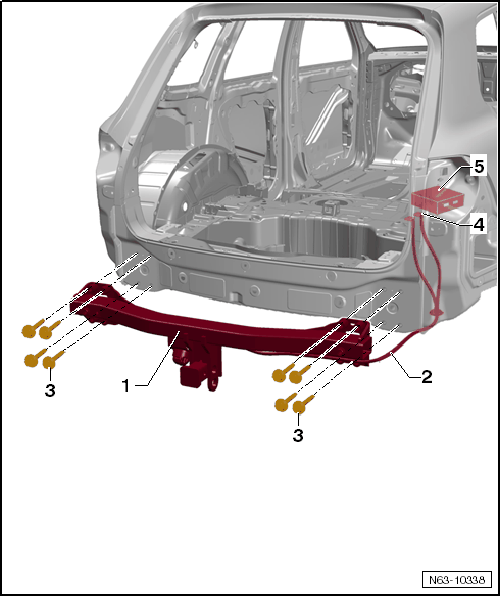

NOTE:
Depending on the version, slight deviations must be considered.
The tightening specifications only apply to factory-installed trailer hitches.
If a different trailer hitch is installed, ask the manufacturer for the tightening specifications.
- Trailer Hitch
- Wiring Harness
- Bolts
- 110 Nm
- Quantity: 4 on each side
- Always replace bolts after removing them.
- Connector
- Control Module
